Steel Structural Column Prefabricated S235/S355 H SECTION/STEEL For
Construction Steel H Beam
T&T as a manufacturer and trade company, which is producing
steel pipe for many years in Tianjin, China. Depends on more than
10 years export experiences, our professional team have won the
market all over the world based on high quality products,
reasonable price, excellent service and honest business. Our main
products are kinds of steel pipe (ERW/SSAW/LSAW/Seamless), beam
steel (H Beam/U Beam, etc), steel bar (Angle bar/Flat bar/Deformed
rebar, etc),CRC &HRC, GI, GL &PPGI, sheet and coil,
scaffolding, steel wire, wire mesh, etc.
Quick Details of H Steel Beam:
Product Name | S235/S355 H SECTION/STEEL for construction h/i beam price pakistan |
Material | Q235/S235JR/S275JR/S355JR/J0/J2,S450J0 |
Standard | GB, JIS,KSD, ASTM, EN, |
Flange width | 175 mm |
Flange Thickness | 175mm |
web width | 7.5 mm |
web Thickness | 11 mm |
Length | 1-12 m as request |
Surface Treatment | Natural Surface |
Technique | Hot rolled |
Package | In bulk, in bundle with strips, by plastic bags |
Certification | ISO 9001-2008 |
Usage | steel
structure,shipbuilding,bridge,mechanial&manufacture,automobile
classis, structure usage |
Payment Term | T/T, L/C,as request |
Delivery | shortly in 15 days ASAP |

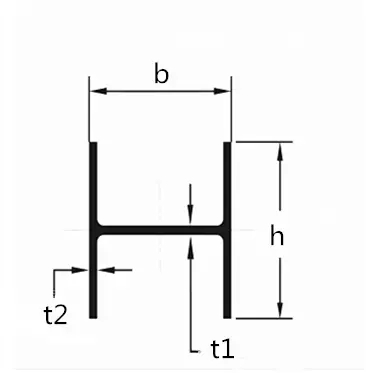

H-beam is a new type of steel for economic construction Method for
Representation of Hot - Rolled H - Section Steel. H-beam is divided
into wide flange H-beam (HK), narrow flange H-shaped steel (HZ) and
H-shaped steel pile (HU) three categories.The height of H × width B
× web thickness t1 × wing thickness t2, such as the H-beam Q235B,
SS400 200 × 200 × 8 × 12 200mm wide and 200mm wide web thickness of
8mm, wing thickness of 12mm Wide flange H-beam grades Q235BQ, 345B
or SS400.
Specification list of H Steel Beam:
H x B
(mm) | T1 | T2 | JIS Weight
(kg/m) | GB Weight
(kg/m) |
| 100*100 | 6 | 8 | 16.9 | 17.2 |
| 125*125 | 6.5 | 9 | 23.6 | 23.8 |
| 294*200 | 8 | 12 | 55.8 | 57.3 |
| 294*302 | 12 | 12 | 83.4 | 85 |
| 300*300 | 10 | 15 | 93 | 94.5 |
| 300*305 | 15 | 15 | 105 | 106 |
| 346*174 | 6 | 9 | 41.2 | 41.8 |
| 350*175 | 7 | 11 | 49.4 | 50 |
| 350*250 | 9 | 14 | 78.1 | 79.7 |
| 344*348 | 10 | 16 | 113 | 115 |
| 350*350 | 12 | 19 | 135 | 137 |
| 496*199 | 9 | 14 | 77.9 | 79.5 |
| 500*200 | 10 | 16 | 88.2 | 89.6 |
| 506*201 | 11 | 19 | 102 | 103 |
| 482*300 | 11 | 15 | | 115 |
| 488*300 | 11 | 18 | 125 | 129 |
| 596*199 | 10 | 15 | 92.5 | 95.1 |
| 600*200 | 11 | 17 | 103.4 | 106 |
| 606*201 | 12 | 20 | 118 | 120 |
| 582*300 | 12 | 17 | 133 | 137 |
| 588*300 | 12 | 20 | 147 | 151 |
| 594*302 | 14 | 23 | 170 | 175 |
| 692*300 | 13 | 20 | 163 | 166 |
| 700*300 | 13 | 24 | 182 | 185 |
| 800*300 | 14 | 26 | 207 | 210 |
| 900*300 | 16 | 28 | 240.1 | 243 |
Chemical Analysis:
| Q235B Element Content for Reference |
| C | Si | Mn | S |
| 0.17~0.22% | ≤0.35% | 0.3~0.7% | ≤0.045% |
| P | Cr | Ni | Cu |
| ≤0.045% | ≤0.030% | ≤0.030% | ≤0.030 % |
Packaging & Shipping
General Packing Methods:
Nude Packing in bundles, or as your requested.
Loading information: in 20/40 GP container.
Application:
Widely used in various building structures, bridges, vehicles,
brackets, machinery, etc., for example, the industrial structure of
the steel bearing bracket,steel piles and underground engineering
supporting structure, petro chemical and powerand other industrial
equipment structure, shipbuilding, machinery manufacturing frame
structure,train, car,tractor beam bracket,port conveyors,high speed
shutter stents.
FAQ Q: Are you trading company or manufacturer ? A: We are agent of factory. Q: How long is your delivery time? A: 10-15 days after received your deposit or original L/C . Q: Do you provide samples ?is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay
the cost of freight. Q: What is your terms of payment ? A: T/T,100% L/C at sight, Cash, Western Union.
|
