    Plastic Coated Galvanized Steel Sheet Construction Purpose Rust Proof Durable

    Product Description
    W beam

    W beam is the world's most widely specified safety barrier system. Highly effective and inexpensive, the most popular means of
    eliminating the threat from roadside hazards.Being a semi rigid barrier, W beam guardrail provides a desirable outcome for both designer and vehicle occupants. The ability of the barrier to absorb some of the crash energy reduces occupant risk and the
    deformation of the impacting vehicles.

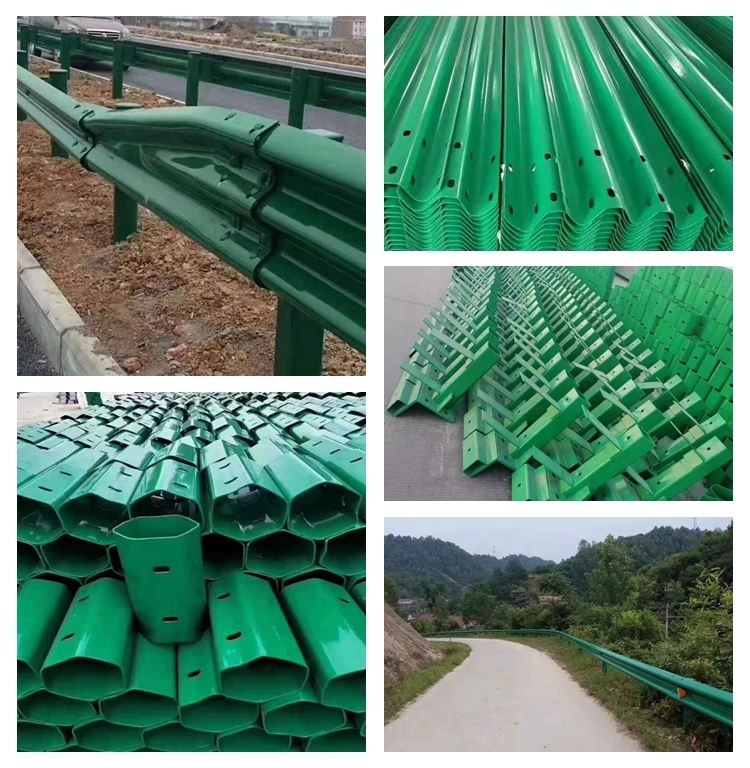

    Expressway Highway Safety Galvanized Plastic Spray Thrie Beam W Beam Guardrail

    Specifications


    Base Material
    A572/Q345B/HA350/Q235B/A36/S355JR/S275JR

    W-Beam
    2320/3320/4128/4130/4318/4320/7938*308/310/311/312/315*2.5/2.6/2.67/2.7/2.75/2.76*2.8/3mm

    Thrie-Beam
    2320/3320/4128/4218/4318/4320*506/508/510*2.76/2.8/3/4/mm

    Surface Treatment
    Hot Dip Galvanized or Powder Coated

    Galvanizing Thickness
    300g/m2 (40µ), 550g/m2 (80µ) or 610g/m2 (85µ) or 1100 g/m2 (160µ) or 1220 g/m2 (170µ) or customized

    Certificate
    AASHTO, AS/NZS, EN, ISO9001, ISO14000, SGS, CE, BV

    Feature
    Great corrosion resistant, high intensity, long and durable, low cost, higher security, environmental protection, etc.

    Other
    Other special specification as per client's requirement or drawings.


    Accessories:
    W Beam

    • Cold roll formed section
    • 3mm /2.7mm thick HR sheet.
    • S235JR/S275JR/S355JR grade steel or equivalent
    • Hot dip galvanised - 550 gms/m2 or 460 gms/m2
    • Yield Strength: 240-310 N/mm2
    • Tensile Strength: 410-490 N/mm2
    • Elongation: 15-25%


    Post

    1. Anchored to foundation on Ground & Bridges
    2. Channel section of 75x150x75x5mm
    3. 5mm thick HR sheet
    4. S235JR/S275JR/S355JR grade steel or equivalent
    5. Hot dip galvanised -550 gms/m2 or 610 gms/m2


    Spacer

    • Buffer between Post & W-Beam
    • Channel section of 150x75x5mm.
    • 5mm thick HR sheet
    • S235JR/S275JR/S355JR grade steel or equivalent
    • Hot dip galvanised -550 gms/m2 or 610 gms/m2


    End Section
    Anglised, Fish Tail or Tubular end terminals

    Fasteners

    • Hot dip galvanised or electro galvanised bolts, nuts and washers conforming to IS 1367 of grade 4.6 MS
    • 16mm dia Button head bolts for W-beam to W-beam & W-beam to spacer connection
    • 16mm dia hexagonal head type bolts for spacer to post connection


    Advantages
    1. The barriers ensure minimum damage to the vehicle and its occupants.
    2. During collision, the beam absorbs maximum energy by flattening out laterally and restrains the vehicle from veering over.
    3. Prevents the vehicle from skidding back onto the carriageway by controlling exit angles through gradual deceleration and effective redirection of the vehicle back on to the road.
    4. Enables quick repairs in case of accidents.
    5. All components are galvanized for longer life.
